Product Description
UND220TC Two-axis Three-light Pod
Product Overview

The UND220TC is a medium-sized two-axis pod series featuring long-range capability with compact dimensions (20Kg-2Kg weight range). This advanced system integrates multiple payloads including thermal imaging (uncooled or cooled infrared), continuous zoom visible light camera, laser rangefinder/photometer, combined with a two-axis servo image stabilization platform and AI intelligent image processing unit.

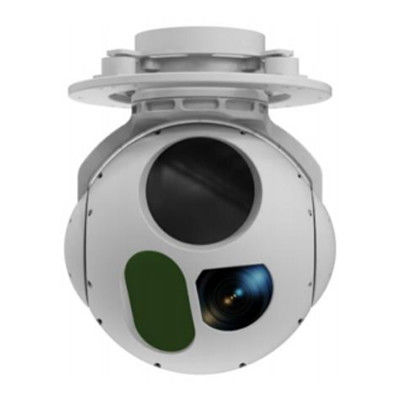

Laser Rangefinder Electro Optic Camera Three Axis 1kg EO IR Sensor Resolution 640x512 UND220TC Two-axis UAV Photoelectric Pod Essential For Positioning Tasks 0
Key Features
  • Compact design: Superior range-to-size ratio with reduced weight
  • High precision: Exceptional stability and tracking accuracy
  • Modular configuration: Flexible payload combinations
  • AI integration: Advanced image processing capabilities
  • Multi-function platform: Servo stabilization, auto recognition/tracking, optical/electronic zoom
Operational Applications

Ideal for diverse aerial platforms including medium-sized fixed-wing and multirotor UAVs in scenarios such as:

  • Military reconnaissance and surveillance
  • Law enforcement and security operations
  • Infrastructure inspection and maintenance
  • Emergency response and disaster management
  • Firefighting coordination and accident investigation
Technical Specifications
Model UND220TC (Two-axis three-optical pod)
Visible Light Camera 2MP resolution, 30x optical zoom, 60x hybrid zoom
Visible Light FOV 63.7°×35.8°~2.3°×1.3°/4.3mm~129mm focal length
Thermal Imager 640×512 resolution, 75mm lens, 12μm pixel pitch
Thermal FOV 5.9°×4.7°
Laser Capabilities Ranging: 20-6000m / Irradiation: 40mJ
Control Interface RS422, UDP protocols
Video Output SDI, 100Mbps network
Storage ≤128GB MicroSD card
Power Requirements 20-32V DC
Dimensions 220×237×295mm
Weight 5KG net
Operational Features Day/night operation, AI recognition, auto tracking, flight data integration, target positioning, laser designation
